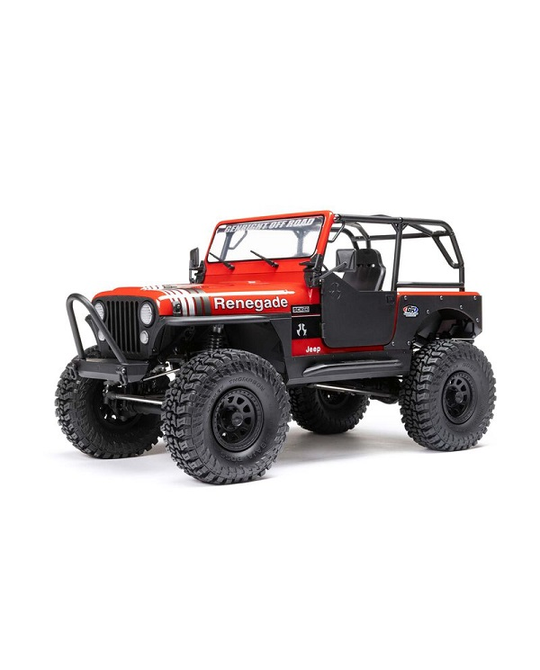

The most iconic off-roader of all time is here! Fully licensed and as capable as it is detailed, the SCX10 III Jeep CJ-7 is ready to take on any trail. It’s essential for every RC crawling enthusiast’s fleet and great fun for fans of full-size Jeeps.
Officially licensed Jeep CJ-7 body
Full interior and many molded accessories
Strong SCX10 III steel C-channel chassis
AR45 standard straight axles
Only battery and charger required

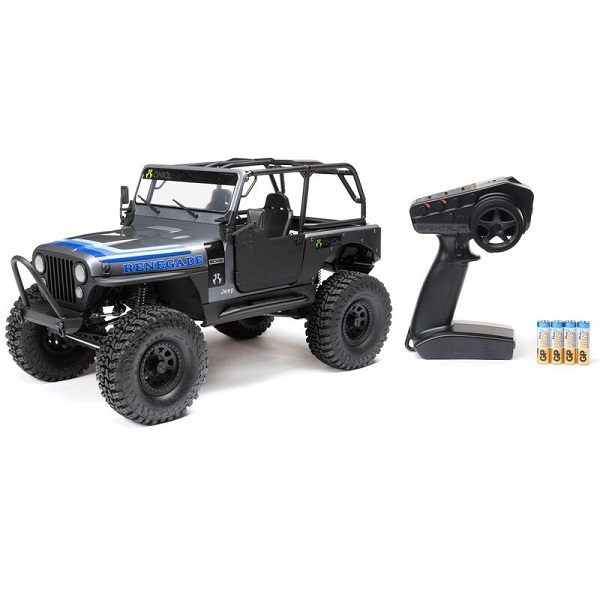

In The Box
(1) Axial SCX10 III Jeep CJ-7 1/10 Scale 4WD RTR
(1) Dynamite 35T Electric Motor (installed)
(1) Spektrum S614 Waterproof Metal Gear Surface Servo, 23T (installed)
(1) Spektrum SX108 Micro Analog Metal Gear Surface Servo, for Dig function (installed)
(1) Spektrum Firma 40A Brushed Smart 2-in-1 ESC and Receiver (installed)
(1) Spektrum DX3 Smart 2.4GHz Transmitter
(4) AA Alkaline Transmitter Batteries
(1) Product Manual
Needed to Complete
(1) 2-3S LiPo Battery with EC3 or IC3 connector
(1) Compatible Battery Charger
Features
Officially licensed Jeep CJ-7 body
Officially licensed Gen-Right bumpers and body armor
Officially licensed Raceline Daytona beadlock wheels
Officially licensed Mickey Thompson Baja Boss R35 compound tires

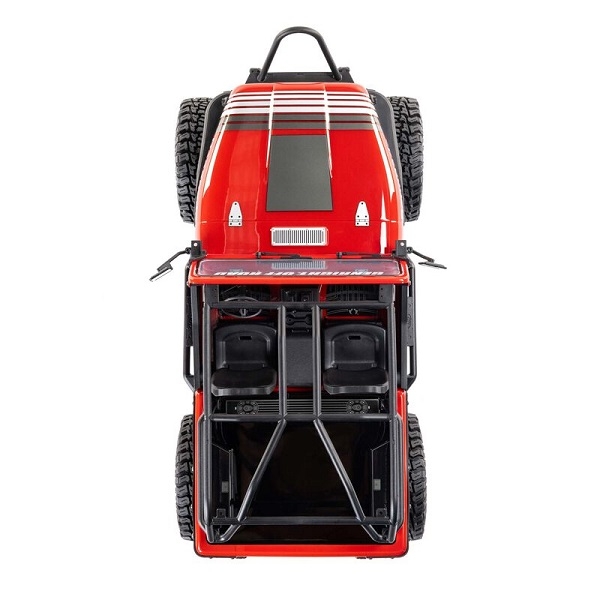

Full interior with opening center console
Strong SCX10 III steel C-channel chassis
AR45 standard straight axles
Multi-link solid axle suspension
Oil-filled coil-over shocks
All-metal gears
Full ball bearings
Spektrum DX3 Smart 3-channel transmitter
Spektrum Firma 40A Smart 2-in-1 ESC and receiver unit
Factory assembled and ready-to-run
Only battery and charger required
Overview
After WWII ended, the hard-working Willys-Overland military Jeep re-emerged as a popular commercial utility vehicle — designated “CJ” for “civilian Jeep”. The CJ-7 model, introduced in 1976, became a favorite for rock crawling and continued in production until being replaced by the Jeep Wrangler in 1987. It remains the most iconic rock crawler of all time.
More than any other vehicle, the Jeep CJ-7 symbolizes off-road adventure. Now, at last, it’s ready for RC expeditions in an officially licensed scale version built on the successful Axial SCX10 III chassis.
For every dedicated RC crawling enthusiast, the SCX10 III Jeep CJ-7 is an essential addition to your collection of Axial rigs. For Jeep enthusiasts without or without RC experience, it’s an exciting new way to bring your off-road dreams to life. The CJ-7 captures everything you admire about the full-size Jeep in both looks and performance.

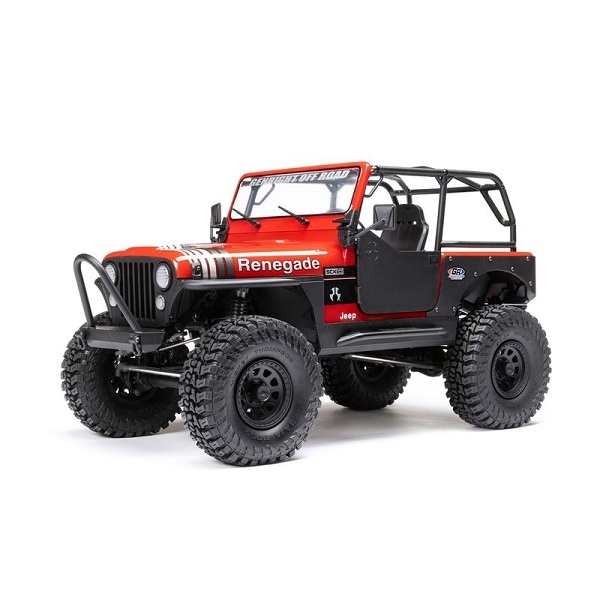

While the SCX10 III Jeep CJ-7 comes engineered and equipped to take on any trail, it’s the incredible scale detail that will have Axial fans eager to make it the canvas for their next rock crawling masterpiece. In addition to the officially licensed Jeep CJ-7 body, this rig features officially licensed Gen-Right bumpers and body armor, a full interior with opening center console, a roll cage, and more. Even the wheels and tires add to its authenticity. The wheels are officially licensed Raceline Daytona beadlocks, and the high-traction tires are officially licensed Micky Thompson Baja Boss treads.

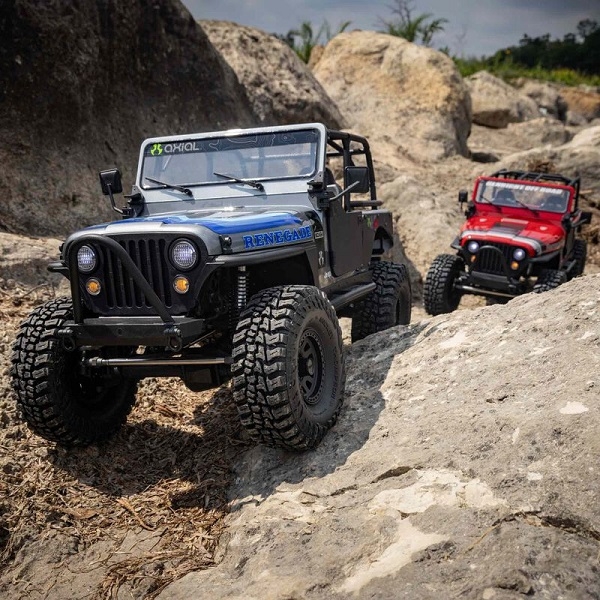

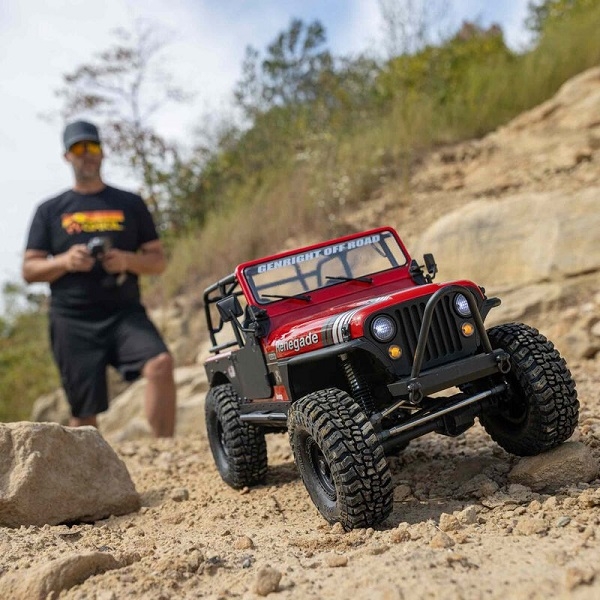

As part of the Axial SCX10 III family, of course, the CJ-7 is as capable as it is detailed. It’s right at home out on the trail navigating scale-appropriate rock crawling obstacles. Adding to the precise handling and proven durability of the SCX10 III platform is a transmitter-activated Dig function for improved turning and control. The Dig servo is included and installed.
The SCX10 III Jeep CJ-7 arrives fully finished and ready-to-run with a factory-installed, brushed power system and Spektrum DX3 Smart transmitter. Just add your choice of 2-3S LiPo battery and charger. With a Spektrum Smart battery, you can take advantage of the radio system’s Smart technology capabilities — such as following your battery’s power status in real time right from the DX3 transmitter.
Gear Pitch | 32P |
Servos | Included |
Final Drive Ratio | 45.6:1 |
Motor Type | Brushed |
Speed Control | Included |
Wheelbase | 12.3" (312 mm) |
Body | Polycarbonate Painted |
Pinion | 14T |
Scale | 1/10 |
Product Width | 9.25" (235 mm) |
Radio | Included |
Inner Tire / Outer Wheel Diameter | 1.9 in |
Battery | Sold Separately |
Connector Type | EC3, IC3 |
Ground Clearance | 2.75 in (69.8mm) |
Internal Gear Ratio | 45.6:1 |
Motor Size | 540 size (Axial 35T Motor included) |
Product Length | 18.9" (480 mm) |
Spur Gear | 52T |
Steering Type | 2WS |
Suspension | Multi-Link Solid Axle |
Wheel Width | 1.0 in (25.4mm) |
Charger | Sold Separately |
Differential | Locked |
Receiver | Included |
Product Weight | 6.9lb (3.12kg) |
Tire Tread | Mickey Thompson Baja Boss |
Vehicle Type | Rock Crawler |
Water-Resistant | Yes |
Ball Bearings | Full Set |
Chassis | Adjustable Steel C-channel |
Completion Level | Ready-To-Run |
Drivetrain | 4WD |
Drive Type | Forward/Brake/Reverse |
Make | Jeep |
Product Height | 9.75" (248 mm) |
Tire Compound | R35 |
Wheel Hex Size | 12mm |
