Avian - 3536-1200Kv Outrunner Brushless Motor
Roll over to zoom in or click to enlarge
Avian - 3536-1200Kv Outrunner Brushless Motor

Spektrum

Avian - 3536-1200Kv Outrunner Brushless Motor

$138.90
Code:SPMXAM4620

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance Free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

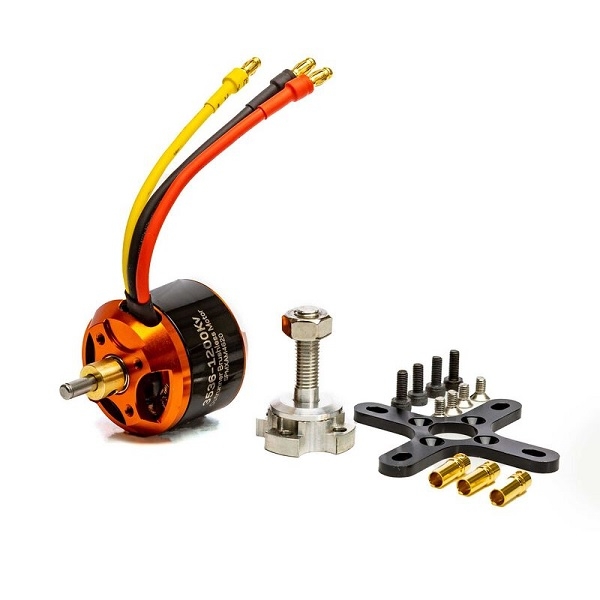

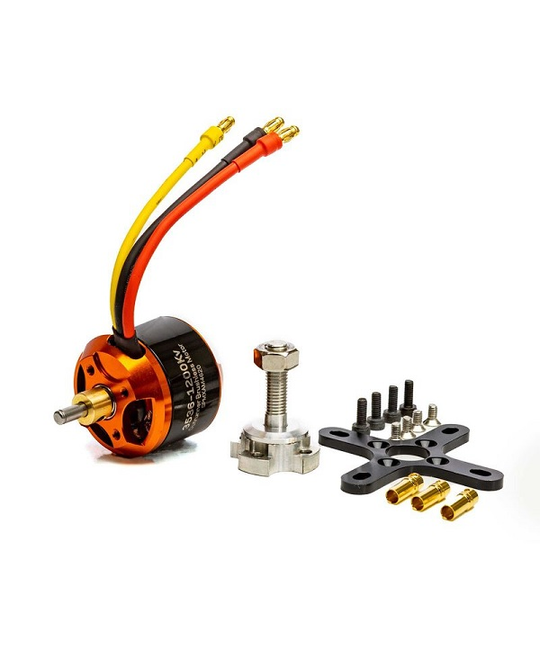

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 45 amp ESC
  • Perfect electric conversion upgrade for .15 size glow combustion power systems

Important Specs

  • Recommended Voltage Range – 11.1v - 14.8V / 3-4S LiPo
  • Recommended Propeller Range – 10x7 to 11x7 Electric Prop
  • Recommended Model Flying weight – 3D 1135g (2.5 lbs) - Sport 1815g (4 lbs)
  • Max Wattage – 310w
  • Max Current – Max Burst Amps (45A) Max Continuous Amps (35A)
Connector Type3.5mm Bullet
Motor Size3536-1200Kv
Product Length1.42" (36 mm)
BearingYes
ForwardYes
Maximum Burst Current45A
Maximum Continuous Current35A
Motor TypeBrushless - Outrunner
ApplicationSport airplanes up to 4lbs (1815g) and 3D airplanes up to 2.5lbs (1135g)
Number of Poles14
Product Weight3.6oz (102g)
Recommended Prop Range10x7 to 11x7 Electric Prop
Shaft Diameter0.16" (4 mm)
Outer Diameter1.37" (35 mm)
Input Voltage11.1v - 14.8V / 3-4S LiPo
RPM/Volt (Kv)1200
Shaft Length0.65" (17 mm)
