Introduction
Built to tackle intense all-weather thrills and spills — and “Designed Fast, Designed Tough” like all ARRMA® vehicles — the 1/10 scale GRANITE™ VOLTAGE™ MEGA SRS 2WD is pumped full of unstoppable engineering. Conquer anything in your path while enjoying head-turning monster truck looks. Ideal for new RC drivers, the GRANITE™ VOLTAGE™ provides exciting punch and easy handling for an affordable low price that includes radio, electronics, NiMH battery and charger. The innovative battery tray also accepts LiPo cells for increasing performance and extending run time. The bashing-optimized suspension delivers awesome stability, allowing you to concentrate on attacking the terrain with a monster truck that handles as good as it looks. Go from the back yard to the beach, from parking lots to grass fields. The ARRMA® GRANITE™ VOLTAGE™ MEGA SRS is ready for anything, straight out of the box.
Features
ARRMA® ATX101 2.4GHz radio.
ADS-5 SRS Servo [70 oz-in (5kg-cm); 0.12s @ 6V]. (Savox 8kg Metal gear servo also included with installation instructions)
MEGA SRS 3-in-1 Unit with ESC and receiver (EC3™ connectors, IC3™ compatible).
MEGA 20T 540 brushed motor.
Double wishbone front and rear suspension .
Top load oil-filled shocks .
Tough metal dogbone driveshafts.
All-metal diff gears.
Smooth-running ball bearings throughout for smooth wheel axle performance.
Adjustable body mounts.
Adjustable ride height.
Durable, multi-terrain dBoots® COPPERHEAD™ Monster Truck tires.
Foam tire inserts for awesome handling.
Tough multi-spoke monster truck wheels.
Ultra-tough, scale-looking monster truck body and decals.
Waterproof*.
2-year limited warranty (see website for details).
*Note: For details on waterproof standards, refer to the instruction manual.
Overview

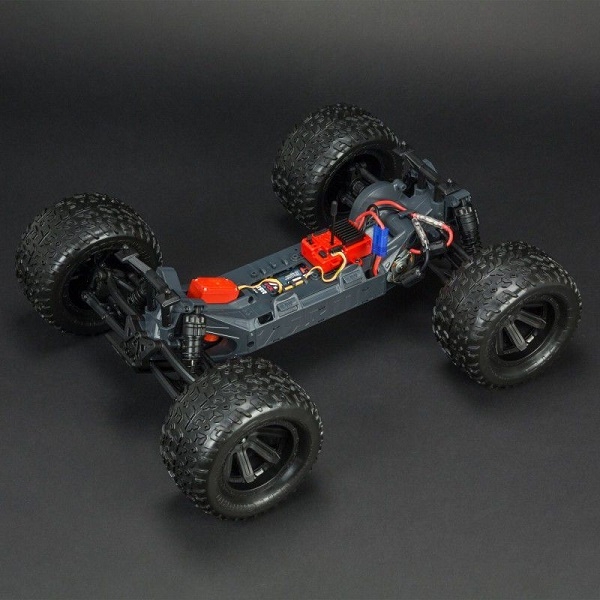

ARRMA® designers are experts at building basher vehicles with eye-catching style, exciting performance, and the toughness to take-on any surface. VOLTAGE™ series models add even more advantages especially for new drivers — including outstanding value and engineering that accepts NiMH and LiPo battery chemistries and a variety of cell counts. Increasing performance and run time is as simple as changing battery type whenever you’re ready. With the GRANITE™ VOLTAGE™ MEGA SRS 2WD monster truck, ARRMA® gives bashers of all levels the benefits of a durable, low-maintenance machine. For simplicity and strength, its motor mount, gearbox, battery compartment and shock towers are all integrated into the molding of a split-line, monocoque-style composite chassis. The included 20T 540 brushed motor is mid-mounted, safe from dirt and rear-end impacts. Wide molded composite gears enable the transmission to withstand immense torque. The differential uses full-metal, straight-cut internal gears and is supported by ball bearings for smooth, efficient, trouble-free operation.
Needed to Complete
Nothing!
What's in the Box?
(1) GRANITE™ VOLTAGE™ 2WD
(1) ATX101 2.4GHz Transmitter
(1) MEGA SRS ESC and Receiver (EC3™ connectors, IC3™ compatible)
(1) MEGA 20T 540 Brushed Motor
(1) ADS-5 SRS Waterproof Servo (5 kg-cm, 70 oz-in) (Savox 8kg Metal gear servo also included with installation instructions)
(1) 1800mAh 7.2V 6-Cell NiMH battery
(1) ADC-N6 6-cell NiMH Wall Charger
(1) 4 x AA batteries
(1) Product Manual
| Approximate Assembly Time: | No assembly required |
| Ball Bearings: | Transmission only |
| Batteries: | 7.2V 1800mAh NiMH stick pack with EC3 connector |
| Battery Dimensions: | L,W,H 5 x 1.75 x 0.75" (127 x 44.5 x 19mm) |
| Body: | Trimmed and painted |
| Brakes: | Integral with ESC |
| Bushing Material: | Metal |
| Charger: | 600mAh AC peak charger |
| Chassis: | Molded composite |
| Completion Level: | Ready-To-Run |
| Differential: | Gear type |
| Drivetrain: | 2WD |
| Final Drive Ratio: | 15.11:1 |
| Gear Pitch: | 48-Pitch |
| Height: | 7.4" (188mm) |
| Internal Gear Ratio: | 2.6:1 |
| Length: | 16.46" (418mm) |
| Motor Size: | 540 |
| Motor Type: | Brushed |
| Pinion: | 16T |
| Radio: | ATX101 2-channel 2.4GHz |
| Servos: | ADS5 Steering servo |
| Shock Type: | Oil-filled coil-over springs |
| Size/Scale: | 1/10 |
| Speed Control: | Mega SRS 3 in 1 with EC3 connector |
| Spur Gear: | 93T |
| Suspension: | Independent |
| Tire Diameter: | 5.12" (130mm) |
| Tire Tread: | dBoots Copperhead MT |
| Vehicle Type: | Monster truck |
| Water-Resistant: | Yes |
| Weight: | 4.25lbs (1.93kg) |
| Wheel Diameter: | 2.81" (71.5mm) |
| Wheel Hex Size: | 12mm Hex |
| Wheel Type: | One-piece multi spoke nylon |
| Wheel Width: | 2.05" (52mm) |
| Wheelbase: | 11.22" (285mm) |
| Width: | 13.39" (340mm) |
