AR12020 12- Channel DSMX / XPlus Receiver -  SPMAR12020
Roll over to zoom in or click to enlarge
AR12020 12- Channel DSMX / XPlus Receiver -  SPMAR12020

Spektrum

AR12020 12- Channel DSMX / XPlus Receiver - SPMAR12020

$385.00
Code:SPMAR12020

Key Features

  • 12-channel full range receiver

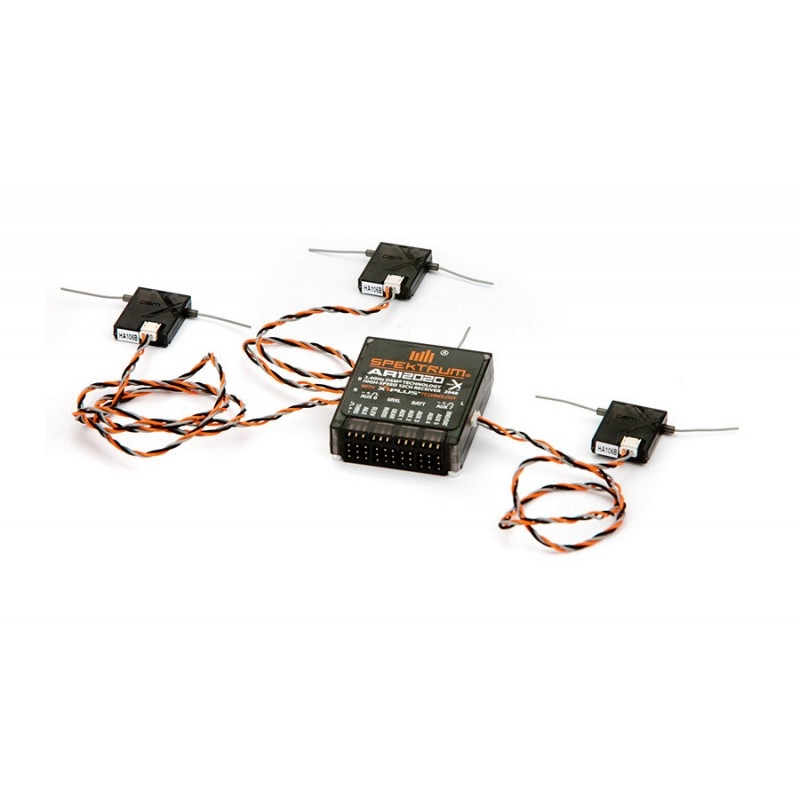

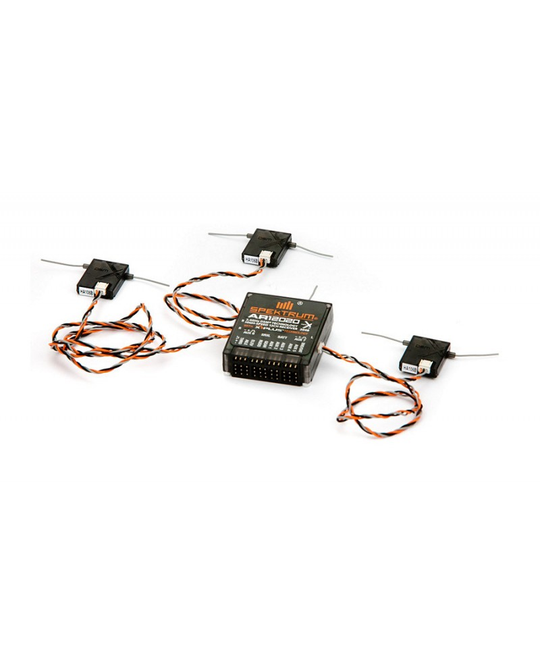

  • Includes one internal and three remote receivers
  • SmartSafe™ failsafe system
  • Flight Log and Telemetry compatible (optional)
  • Patented MultiLink™ receiver technology
  • X-Plus compatible
  • QuickConnect™
  • 2048 Resolution
  • High-speed 11ms operation when used with capable transmitters

Overview

The AR12020 full range 12-channel, X-Plus™ compatible receiver features DSM2&erg; and DSMX® technology and is compatible with all Spektrum™ and JR® aircraft radios that support DSM2 and DSMX technology including: JR12X, 11X, X9503, X9303, Spektrum DX10t, DX8, DX7, DX7se, DX6i, DX5e and Module Systems.

Applications
Full range up to 12-channel aircraft including:
• All types and sizes of glow, gas and electric powered airplanes
• All types and sizes of no-powered gliders
• All types and sizes of glow, gas and electric powered helicopters

Includes:
AR12020 Receiver main unit
Remote receiver (3) - SPM9645
24" remote receiver extension (1) - SPM9013
12" remote receiver extension (1) - SPM9012
9" remote receiver extension (1) - SPM9011
User Guide
Male/Female bind plug - SPM6803

IMPORTANT: Not for use in airplanes that have full carbon fuselages OR that have significant carbon or conductive structures. We recommend using either the AR6255 or AR9300/AR9310 receivers for carbon fuselage applications.

NOTICE: The AR12020 receiver is not compatible with the Spektrum DX6 park flyer transmitter.

Price: $385.00
Availability:
Add to wishlist
Specs

Specs

Antenna Length: 31mm
Band: 2.4GHz
Bind Method: Bind Plug
Data Flight Log Compatible: Yes
Failsafe: Yes
Height: 0.60 in (15.3mm)
Input Voltage: 4.8 - 10V
Length: 2.05 in (52mm)
Model Type: Airplane
Modulation : DSM2/DSMX
Number of Channels: 12
Number of Receivers: 4
Range: Full
Resolution: 2048
Telemtry: Yes
Weight: 1.4 oz (40 g)
Width: 1.83 in (46.5mm)
