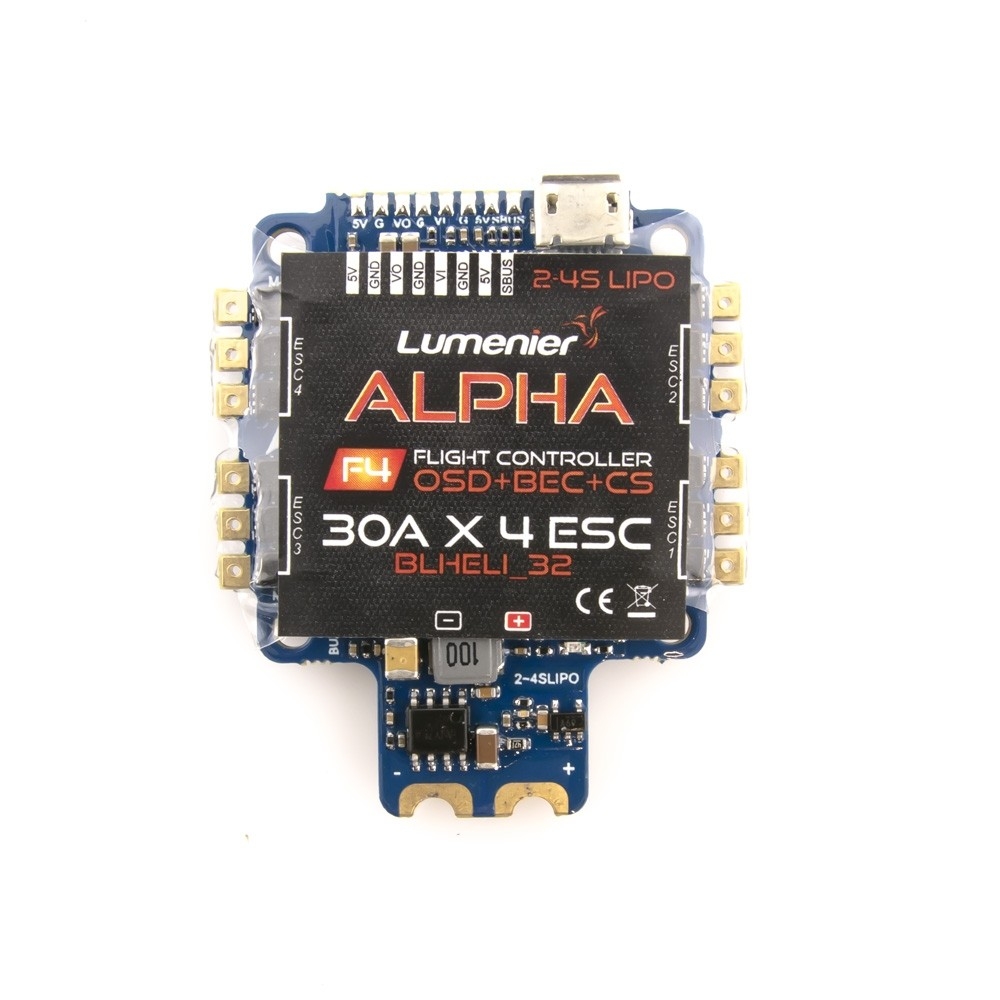

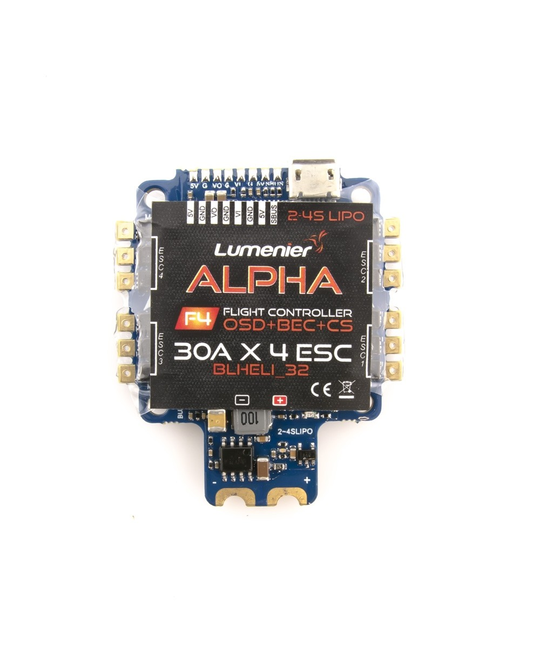

ALPHA AIO Flight Controller (F4 FC, 4x 30A BLHeli_32 ESC, OSD, PDB, Curr)
Roll over to zoom in or click to enlarge
ALPHA AIO Flight Controller (F4 FC, 4x 30A BLHeli_32 ESC, OSD, PDB, Curr)

Lumenier

ALPHA AIO Flight Controller (F4 FC, 4x 30A BLHeli_32 ESC, OSD, PDB, Curr)

$199.90
Code:GF7681

The Lumenier ALPHA AIO Flight Controller is a truly All-in-One FC that combines a F4 FC, 4x 30A BLHeli_32 bit ESCs, Betaflight OSD, PDB, 5v 3A BEC and Current Sensor all in 1 compact package and weighing only 16g! Like other AIO flight controllers, you’ll be able to tune your PID’s using your transmitter, and use the drag and drop OSD setup in the OSD tab of the BetaFlight Configurator. This ALPHA AIO Flight Controller integrates the latest in ESC technology with BLHeli_32 bit ESCs, while at the same time handing high current of 30A per motor constant. If you've been thinking about trying a AIO FC + ESC, then this is the one for you.

Specification

  • BLHELI_32 4in1 30A+F4+OSD
  • Con.current: 30A
  • Peak current(10s): 35A
  • SBEC: 3A/5V
  • Lipo: 2-4s
  • F4+OSD+BEC+CURRENT
  • Input: 2-4s lipo
  • Output voltage: 5V/2A
  • STM32F4 CPU
  • Black box
  • ICM-MPU6000 Accelerometers and Gyroscopes
  • MicroUSB socket
  • Weight: 16g
  • Size(PCB): 36*36mm

BetaFlight software target is VGOODHF4 for 3.1.7 or below. For BetaFlight 3.2 and higher use the LUXF4OSD

Includes

  • 1x 30A 4in1 ESC built-in F4 flight controller
  • 1x 16AWG Power Cable
  • 1x Plastic spacers (M3x 5mm and 3mm tall) and screws (M3x20)
