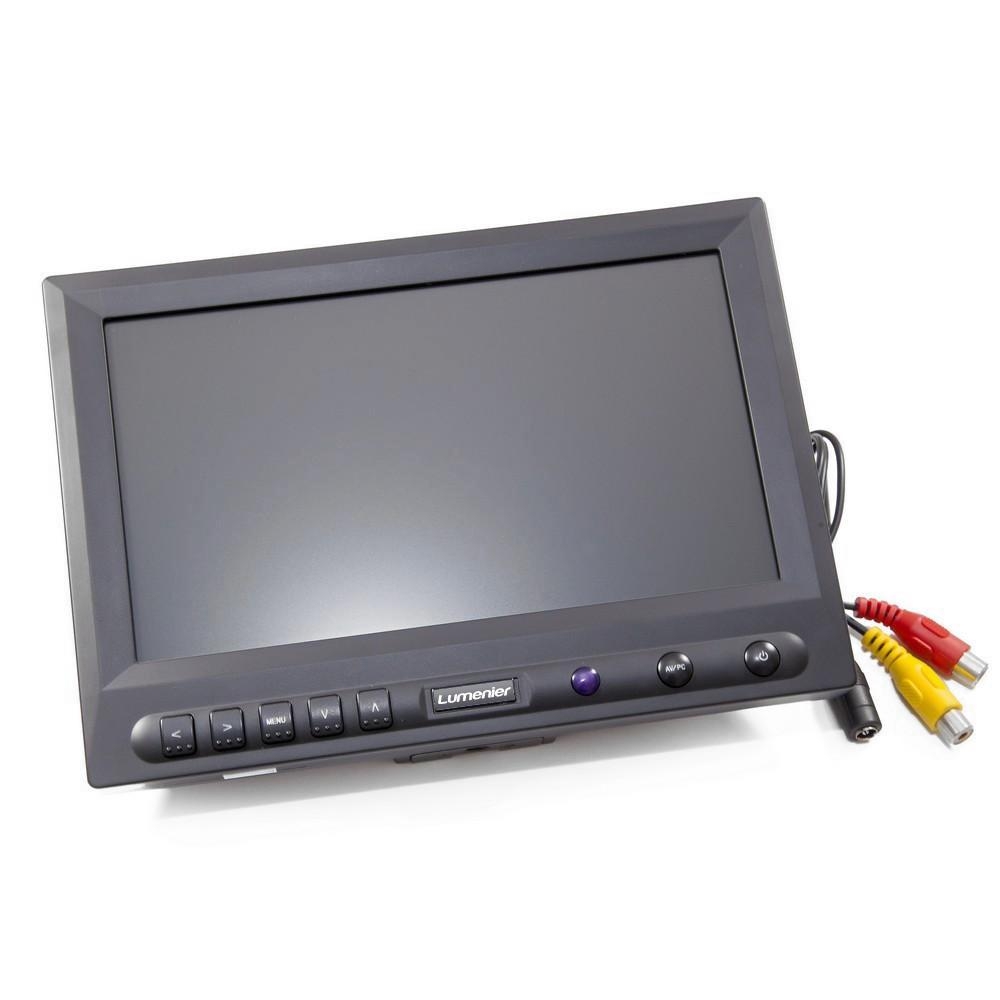

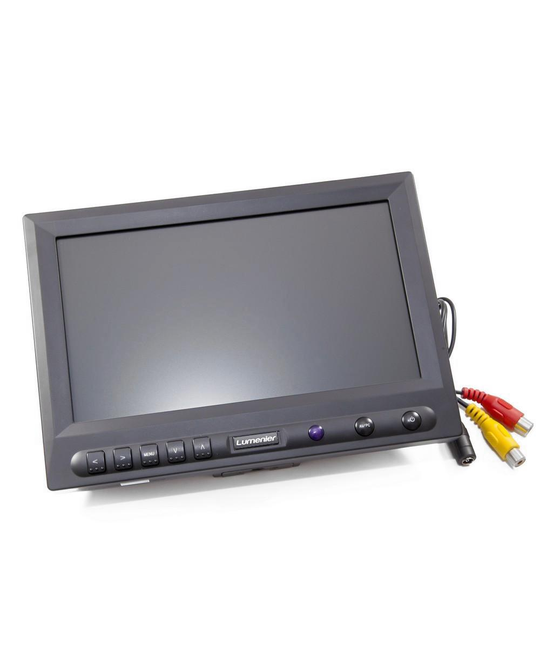

This FPV monitor is a medium sized 8" super bright LCD screen. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 450cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare.
This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank.
Specifications
- Image: 8" TFT LCD
- Resolution: 800x480
- Input resolution up to 1920x1440
- Horizontal frequency range: 30-60KHz
- Field frequency range: 60-75Hz
- Pixel Size 0.0736(W)x0.207(H)mm
- Display Ratio: 16:9
- Brightness: 450cd/m²
- Viewing Angle: 70°/70°(L/R) 50°/70°U/D
- Contrast Ratio: 500:1
- Response time: 15ms
- Input Voltage: DC 6-16V (2s-4s compatible)
- Speaker built in, 1W
- Power Consumption: ≦8W
- Input Singal: RCA video and audio
- NTSC/PAL Manually Selectable in Menu
- Size: 209 x 147 x 35 mm
- Weight: 620g with cables and sun shield
- Mounting: Standard 1/4-20 tripod and VESA mounts
Includes
- 8" LCD Monitor

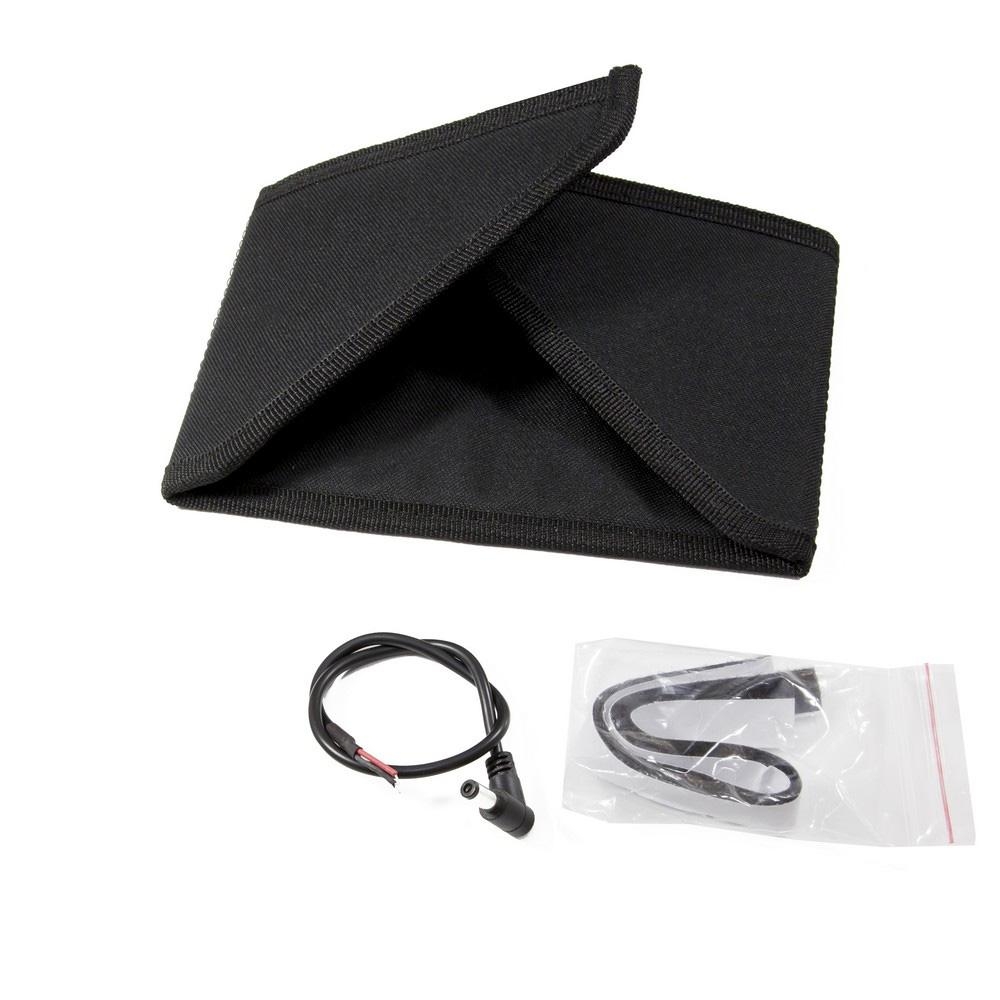

- Sun Shield with Velcro Strips
- 2.1mm Barrel plug power adapter with pigtail for easy hookup to FPV ground station.(center pin positive)
- A/V Breakout Cable RCA video and audio
- Manual
