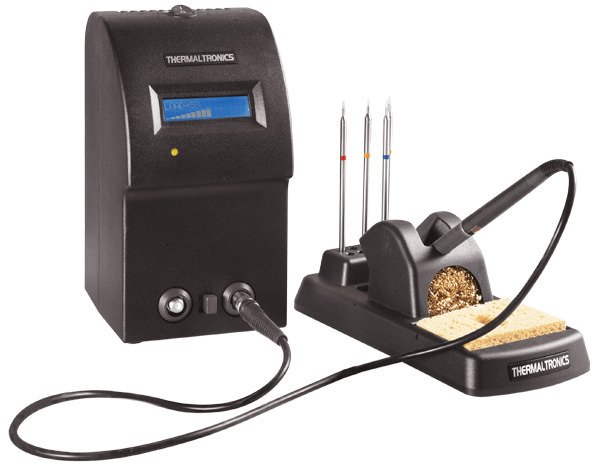

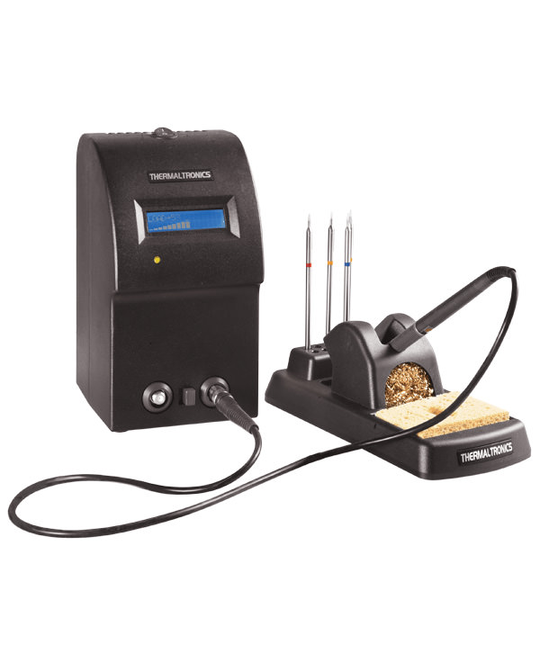

40W 13.56MHz Soldering and Rework Station - TS1710
Roll over to zoom in or click to enlarge
40W 13.56MHz Soldering and Rework Station - TS1710

Thermaltronics

40W 13.56MHz Soldering and Rework Station - TS1710

$999.90
Code:ELTS1710
The TS1710 is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.

 High thermal recovery & performance.
 13.56MHz power supply with built-in LCD display.
 Dual switchable soldering ports.
 No calibration or operator training required.
 No additional coil assembly costs.

PACKING LIST
TMT-9000PSPower Supply
SHH-1Soldering Handpiece Holder
SHP-1Soldering Handpiece
RMP-1Tip Removal Pad
SG-1-HRBHeat Resistant Grip
SG-1-GRHandpiece Grip Green
SG-1-GYHandpiece Grip Gray
BC-1Brass Curls
SPG-1Sulphide Free Sponge
M7CH176Soldering Tip Cartridge
Price: $999.90
Availability:
Add to wishlist
Specs

SPECIFICATIONS

Input Line Voltage:TMT-9000PS-1100-110 VAC
 TMT-9000PS-2220-240 VAC
Tip to Ground Potential:2mV, true RMS 50-500Hz
Tip to Ground Resistance:<2 Ohms DC
Idle Temperature Stability:+/- 1.1°C (2°F)
Ambient Operating Temperature:10-40°C (50°F -104°F)
Maximum Enclosure Temperature:50°C (122°F)
Fuse:TMT-9000PS-1125V 1A
 TMT-9000PS-2250V 0.5A
Output Power (Maximum):40 Watts
Output Frequency:13.56 MHz
Size (W x H x D):212.4mm x 118mm x 132mm
Weight:3.47 KG
LCD display:60.0mm x 16.0mm
Input Line Frequency:50/60 Hz
