4.3" LM403 LCD FPV Monitor with 5.8GHz 32CH (Raceband) Receiver - 4195

$219.90
Code:GF4195

This FPV monitor is a small sized 4.3" screen with a super bright LCD and 5.8GHz 32CH diversity receiver, and built in rechargeable battery. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 500cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeable battery keeps your FPV groundstation compact and easy to use. The LM403 features 4 bands and 32 channels with easy to use push buttons and an auto search feature.

This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.

Features

  • 4.3 Inch, 16:L9, Sunshield protection
  • Four bands, 32 channels with Raceband

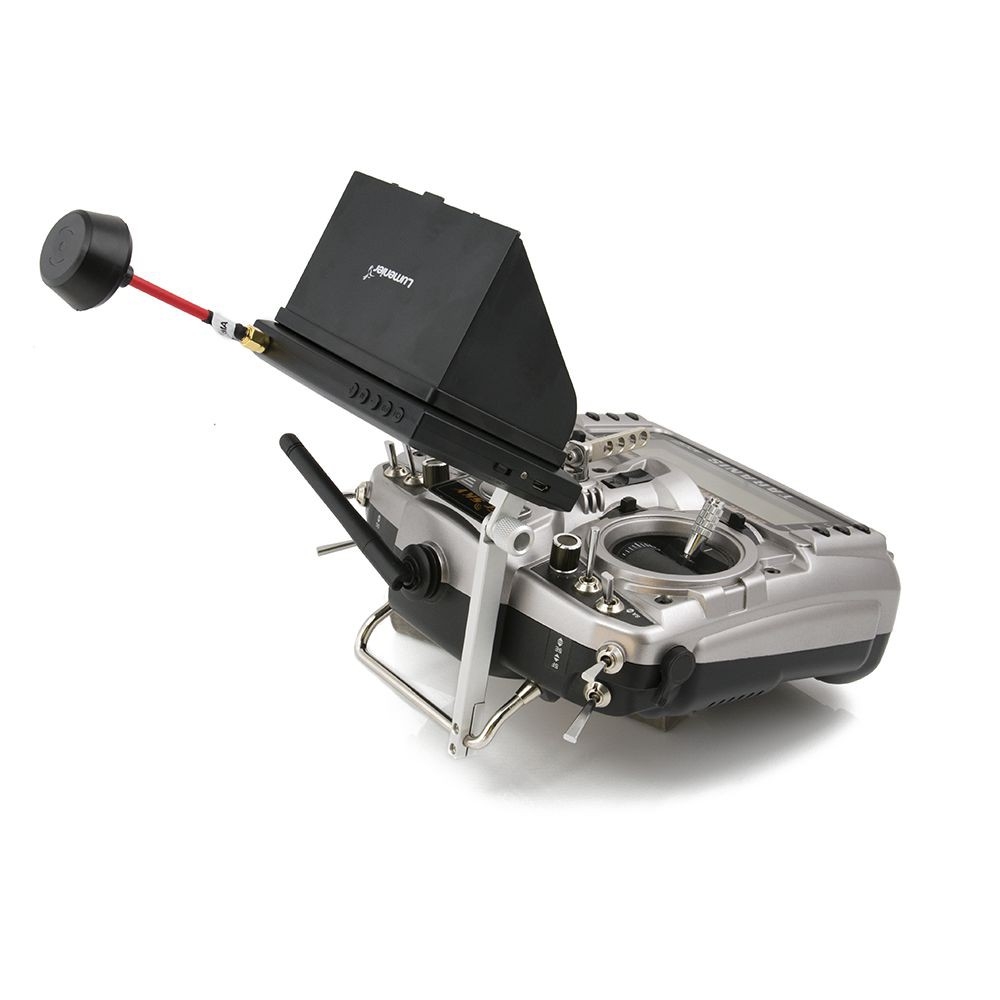

  • CNC Aluminum bracket for radio mounting
  • Vivid colors and bright screen
  • One key automatic frequency search
  • Built in battery, charge via USB

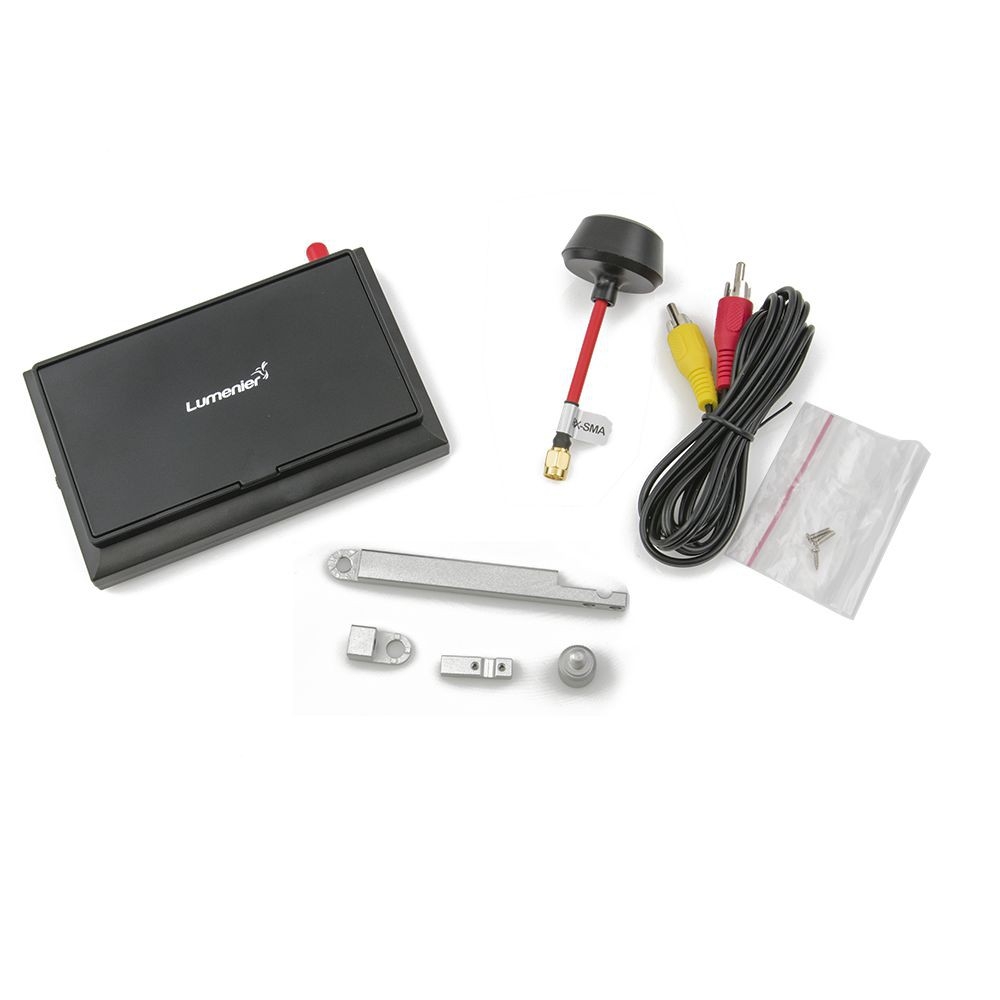

Includes

  • 4.3" LCD Monitor with 5.8GHz 32CH (Raceband) diversity receiver.
  • Built in rechargeable battery (2200mAh LiPo)
  • 1x 5.8GHz Circular Polarized Antenna
  • Removable plastic pop-up Sun Shield
  • Manual

Band

Frequancy (MHz)

Ch1 Ch2 Ch3 Ch4 Ch5 Ch6 Ch7 Ch8
A 5658 5695 5732 5769 5806 5843 5880 5917
B 5740 5760 5780 5800 5820 5840 5860 5880
C 5865 5845 5825 5805 5785 5765 5745 5725
D 5705 5685 5665 5645 5885 5905 5925 5945

Price: $219.90
Availability:
Add to wishlist
Specs
Screen Size: 4.3 inch
  • Screen Type: TFT LCD screen/long life
  • Resolution: 480x272 pixels
  • Aspect Ratio: 16:9
  • Brightness: 500cd/m2
  • Video Format: NTSC
  • Input Signal: AV
  • Working Voltage: 5V
  • Power Consumption: 500mA
  • Working Status OSD display: Battery indication, Channel inaction
  • Built-In Rechargeable Battery: 2200mAH
  • Working Time: 2 hours
  • Dimension: 122.7*80*14.5mm
  • Sensitivity: -90dBm
  • Frequency Range: 5645MHz - 5945MHz
  • Channel: 32 channels
  • One-Key-Search Frequency: Yes, button control instead of switch
  • Audio: 6.0MHz - 6.5MHz
