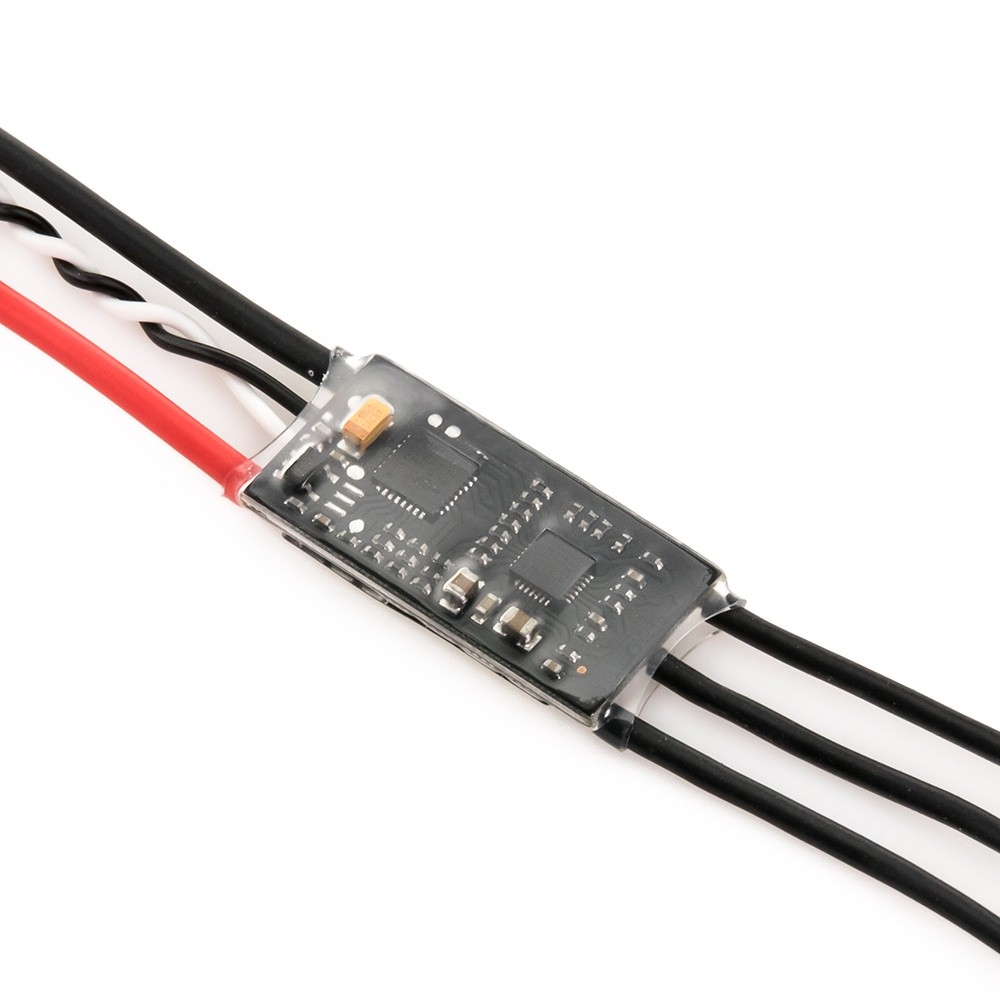

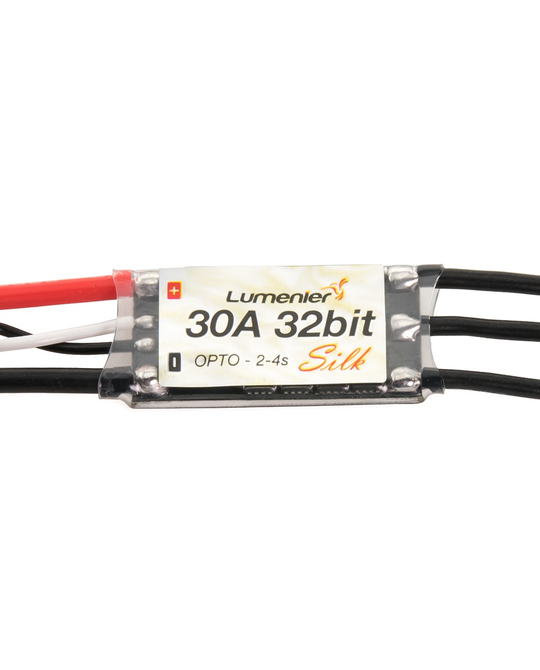

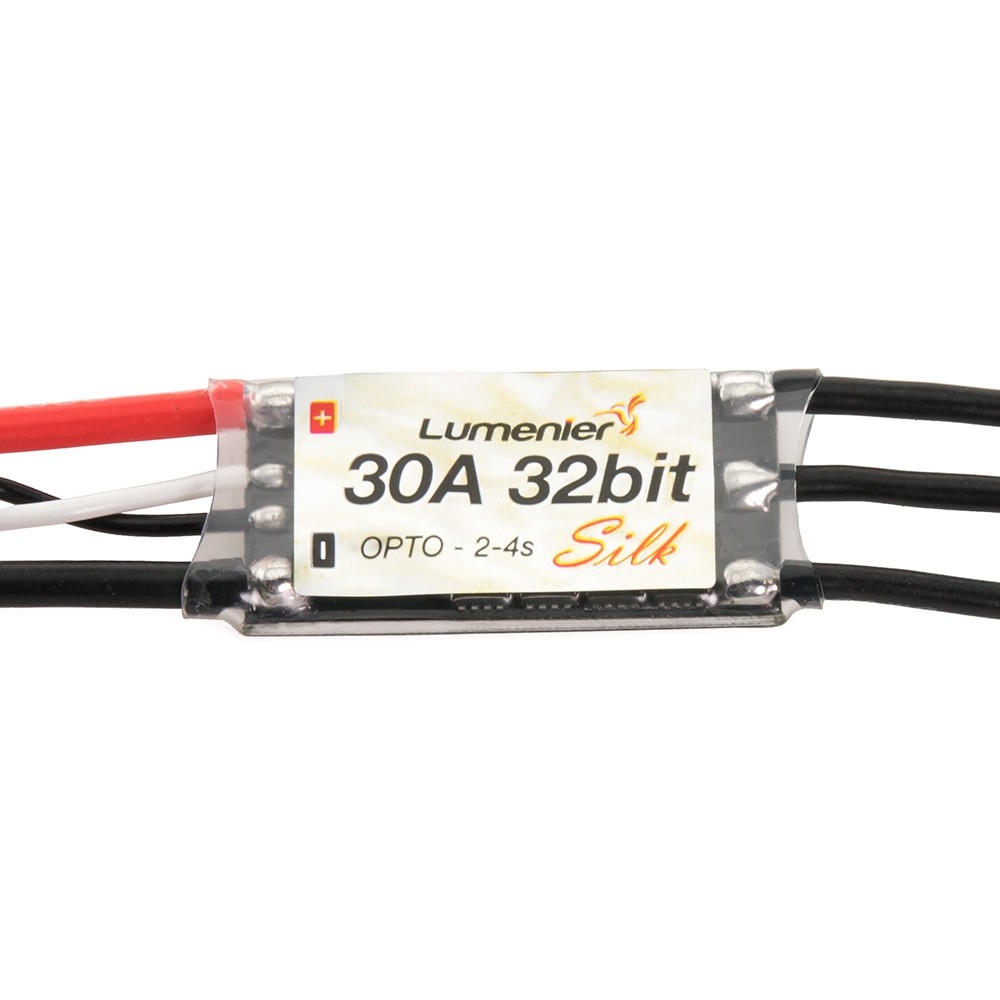

The Lumenier 30A 32bit Silk ESC OPTO Dshot 1200 (2-4s). These ESCs are extremely smooth and powerful. Oneshot / Multishot compatible.Details
The Lumenier Silk ESCs feature the powerful STM32F051 48MHZ ARM 32-bit micro-processor. This 32bit processor allows the ESC to perform with incredible precision, resulting in smooth and responsive power. The ESCs are low profile and compact in size, saving weight and making builds easy. The Silk ESCs are OPTO (no BEC) and come pre-soldered with motor, signal and power wires for your convenience. The ESC features state of the art firmware pre-installed on them, no need for flashing or updating constantly. They are compatible with PWM, Oneshot125, Oneshot42, Dshot 1200 and Multishot protocols. Simply enable the feature in the flight controller software and the ESC will automatically match it.
The Silk ESCs get their name from the extremely smooth throttle response the 32bit proccessor delivers. There is a wide throttle range of 1480 steps, ensuring a high resolution. We're sure you'll be impressed with the performance of these ESCs.
Features
STM32F051 48MHZ ARM 32-bit micro-processor
Dedicated Gate drivers, PMSM
Hardware PWM driver
Custom designed for multirotors
Ultra Lightweight, and compact size
Adaptive timing, compatible with a wide range of motors and Kv
Sychronous rectification technology adds efficiency
Powerful regenerative braking / active braking.
Blocking Protection - If the propeller is blocked from spinning the ESC will automatically stop the rotation to avoid damage. Motor will automatically rotate again once blockage is removed.
PWM output frequency 24 KHz.
2-4s LiPo battery compatible
Specs
Input: 2-4s LiPoly
Constant: 30 Amps
Burst: 40 Amps
BEC: No BEC, OPTO only
Dimensions: 28x14x5mm
Signal wire: 10cm
Motor, Power wires: 9cm
Weight: 5g (without motor wires)
Downloads
- New version for Passthrough and DSHOT version
- Original Version for SILK ESC previous to DSHOT and Passthrough
