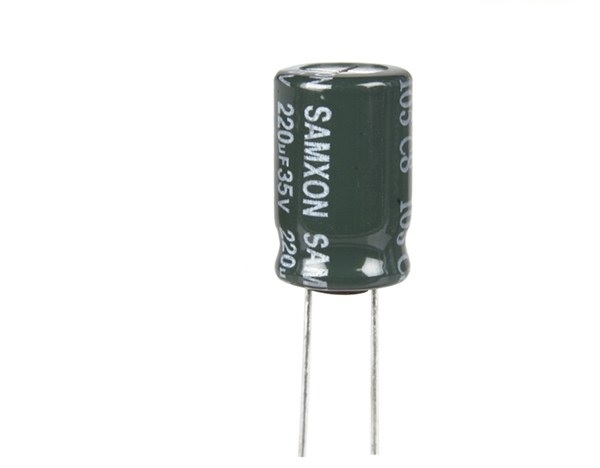

220uF 35VDC Low ESR Electrolytic Capacitor
Roll over to zoom in or click to enlarge
220uF 35VDC Low ESR Electrolytic Capacitor

Electus

220uF 35VDC Low ESR Electrolytic Capacitor

$1.50
Code:ELRE6336
An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.

Features:

- Stable, low impedance characteristics
- Ripple Current mA rms: 840
- Ripple current measured at 105°C 100kHz
- Impedance: 0.09
- Impedance: max at 20°C 100kHz
- Low D.C. leakage current
- Extended life - high reliability withstanding 2,000 to 4,000 hours load life at 105°C
- Radial leads on standard pitch

Specifications
Capacitor type : Electrolytic Low ESR
Polarised Capacitor : true
Item capacitance : 220.0µF
DC Voltage : 35.0V
Operating Temperature : 105.0°C
Height : 16.0mm
Diameter : 10.0mm
Component Type : Electrolytic Capacitor
Pack Quantity : 1.0pc
Passive mount type : Through Hole
Passive connector type : Solder Legs
Component package : Radial
Passive number of legs : 2.0
Passive marking code : Printed
Price: $1.50
